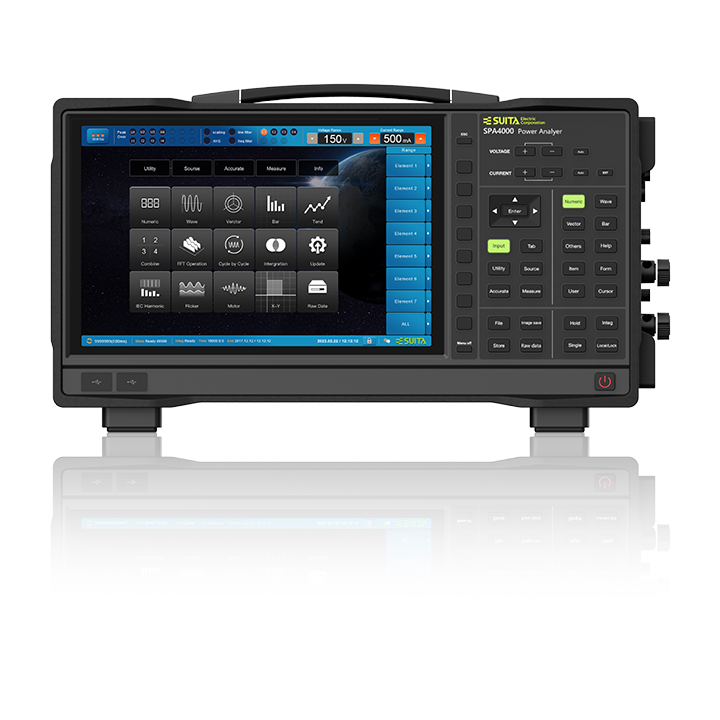

SPA4000 Power Analyzer – Multifunctional Portable Power Analyzer

SPA4000 is a portable, user-friendly, high-precision power analyzer for field technicians. It features multiple power channels and motor channels, empowering technicians to swiftly and effectively develop solutions tailored to the specific application.

Download Specification (PDF)

Overview Features Case Studies Related Products Support

A portable power analyzer with a wide range of power supply options!

SPA4000 Power Analyzer provides multiple power supply modes to address the issue of conventional instruments caused by its limited power supply conditions. The flexibility to adjust power supply modes according to different applications enhances adaptability. SPA4000 features portability with multiple high-precision power channels and motor channels, empowering field technicians to swiftly and effectively devise solutions in diverse circumstances. Designed for today's field technicians.

High measurement accuracy: ± (0.03% of reading + 0.05% of range)

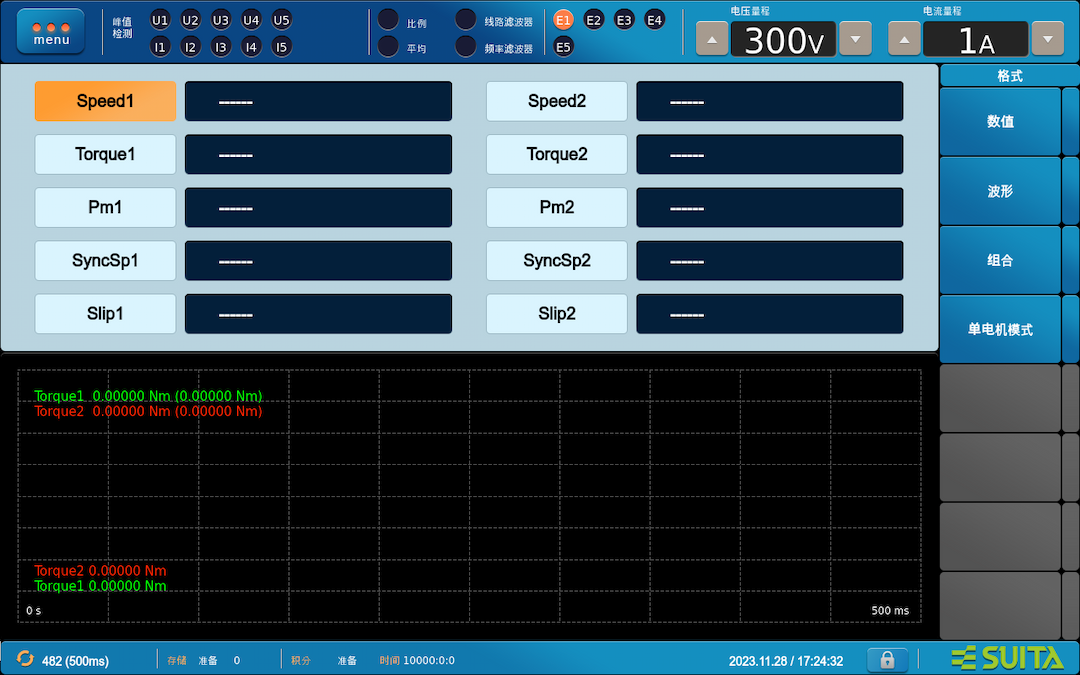

4 power channels and 2 motor channels, supporting double-motor or 4-terminal single-motor

Multiple power supply modes, supporting current clamp-based power supply

built-in lithium-ion battery for DC supply, with a 3-hour battery life

Wide voltage / current measurement range: 3-1500V / 0.01-5A

Bandwidth: DC, 0.1Hz-500KHz

Sampling rate up to 1M/s, ensuring more accurate data recording

16-Bit high-resolution A/D conversion and a 20-channel D/A output

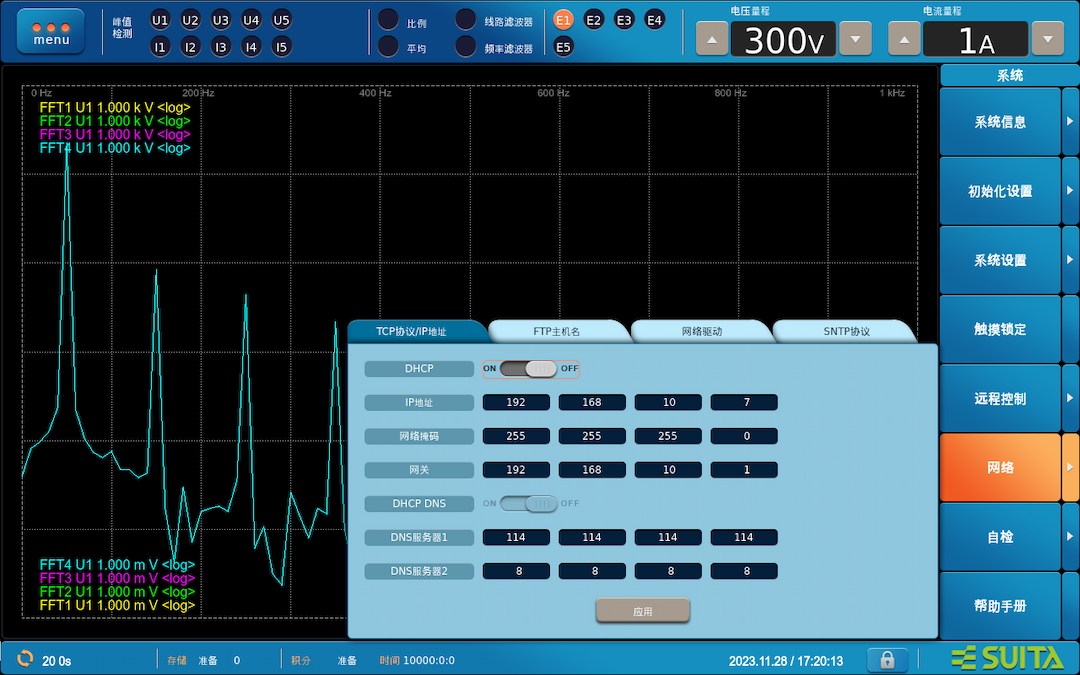

10.1” LCD touch screen equipped with a user-friendly UI

Cloud Communications

SPA4000 Power Analyzer offers cloud communications, supporting GPS, 4G, 5G, and WIFI. This allows for remote control and data transmission, facilitating field technicians in developing effective solutions.

Cloud Communications

Our premier power analyzer with top-tier quality and precision measurements.

High measurement accuracy power analyzer, customized for enterprise R&D testing with modular solutions.

Why should I choose SUITA Electric?

How can we make testing easier, faster and better? This is the challenge that SUITA Electric has been diligently addressing, and our team of experts continuously delivers outstanding and innovative solutions to tackle this issue. We are currently collaborating closely with globally renowned automotive manufacturers and leading companies in battery, solar panel, energy storage, semiconductors, manufacturing, and R&D. Our objective is to consistently enhance our solutions and assist our customers in achieving industrial upgrades. It is well-suited for applications in the renewable energy, battery, energy storage, and other related sectors. It is versatile and can be utilized in a variety of tests, offering strong extensibility. It provides long-term real-time data storage and playback analysis. Phase compensation is implemented to enhance power measurement accuracy.
